Cross Over

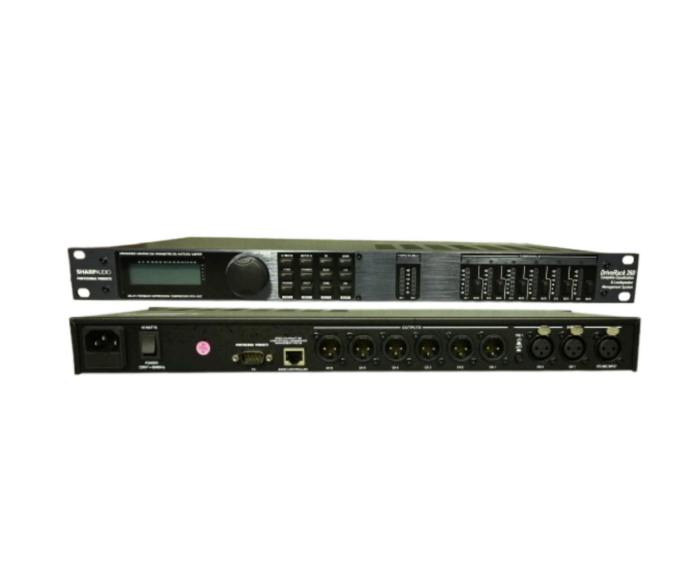

ST-260 DSP (Class H) is a professional-grade crosssover

• Advanced Feedback Suppression

• Classic Compression and Limiting

• Graphic and Parametric EQ

• Independent Input and Output Processing

• Auto-EQ Function

• Full Bandpass, Crossover, and Routing Configuratio

• Pink Noise Generator and full-time RTA

• Setup Wizard with Components

• Security Lockout

• Wall Panel Control Inputs

• 2.7 Seconds of Alignment and Zone Delay

• RS-232 PC GUI control

A high-power professional crossover

• Input -> Active Balanced, 18K

• Max. Input Level -> +20dBu

• Input Gain Range -> -40dB to +15 dB

• Output -> Active Balanced, 112

• Max. Output Level -> +20dBu

• Output Gain Range-> -40dB to +15 dB

The 234 XL Crossover is a high-performance power

INPUT:

• Connectors:1/4" TRS or XLR

• Type:Electronically balanced/unbalanced, RF filtered

• Impedance:Balanced 50 kΩ, unbalanced > 25 KΩ

• Max Input Level:+22 dBu typical, balanced or unbalanced

• CMRR:>40 dB, typically > 55 dB at 1 kHz

Output:

• Connectors:1/4" TRS or XLR

• Type:Electronically balanced/unbalanced, RF filtered

• Impedance:Balanced 200Ω, unbalanced 100Ω

• Max Input Level:>+21 dBu balanced/unbalanced into 2 k or greater

Output:

• Connectors:XLR

• Type:Electronically balanced/unbalanced, RF filtered

• Impedance:Balanced 60Ω, unbalanced 30Ω

• Max Input Level:>+20 dBu balanced/unbalanced into 6000 or greater
