Hiss (H.F)

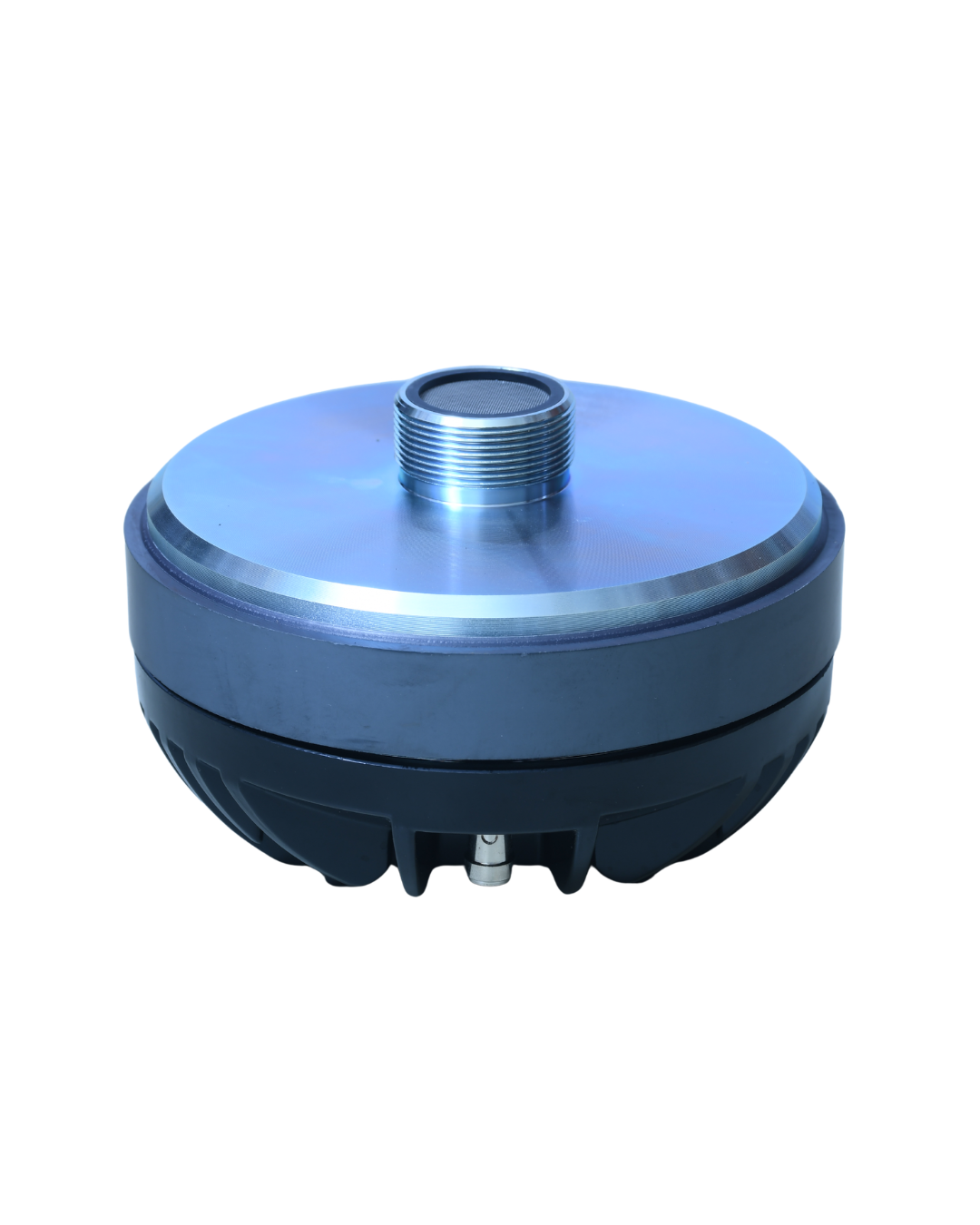

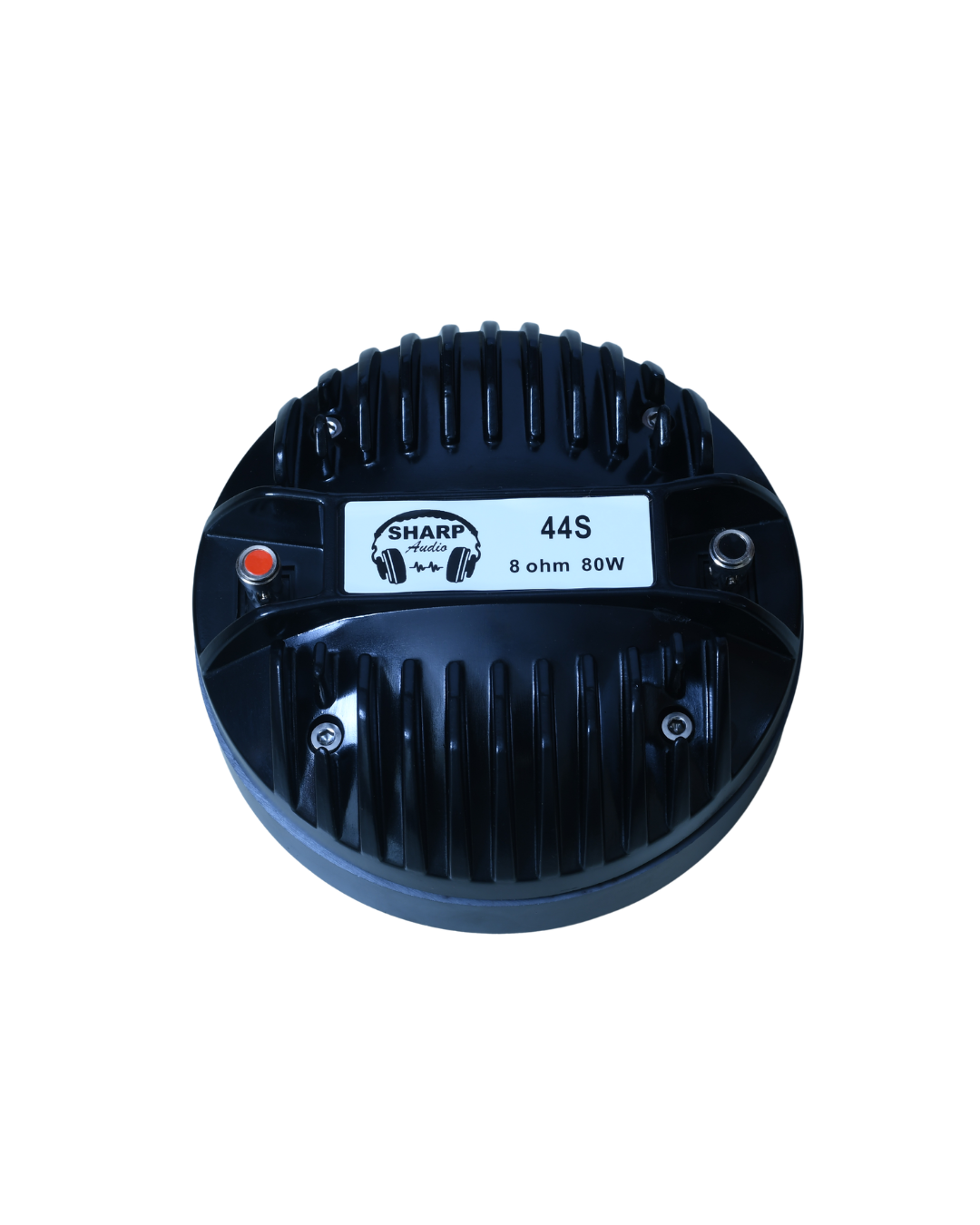

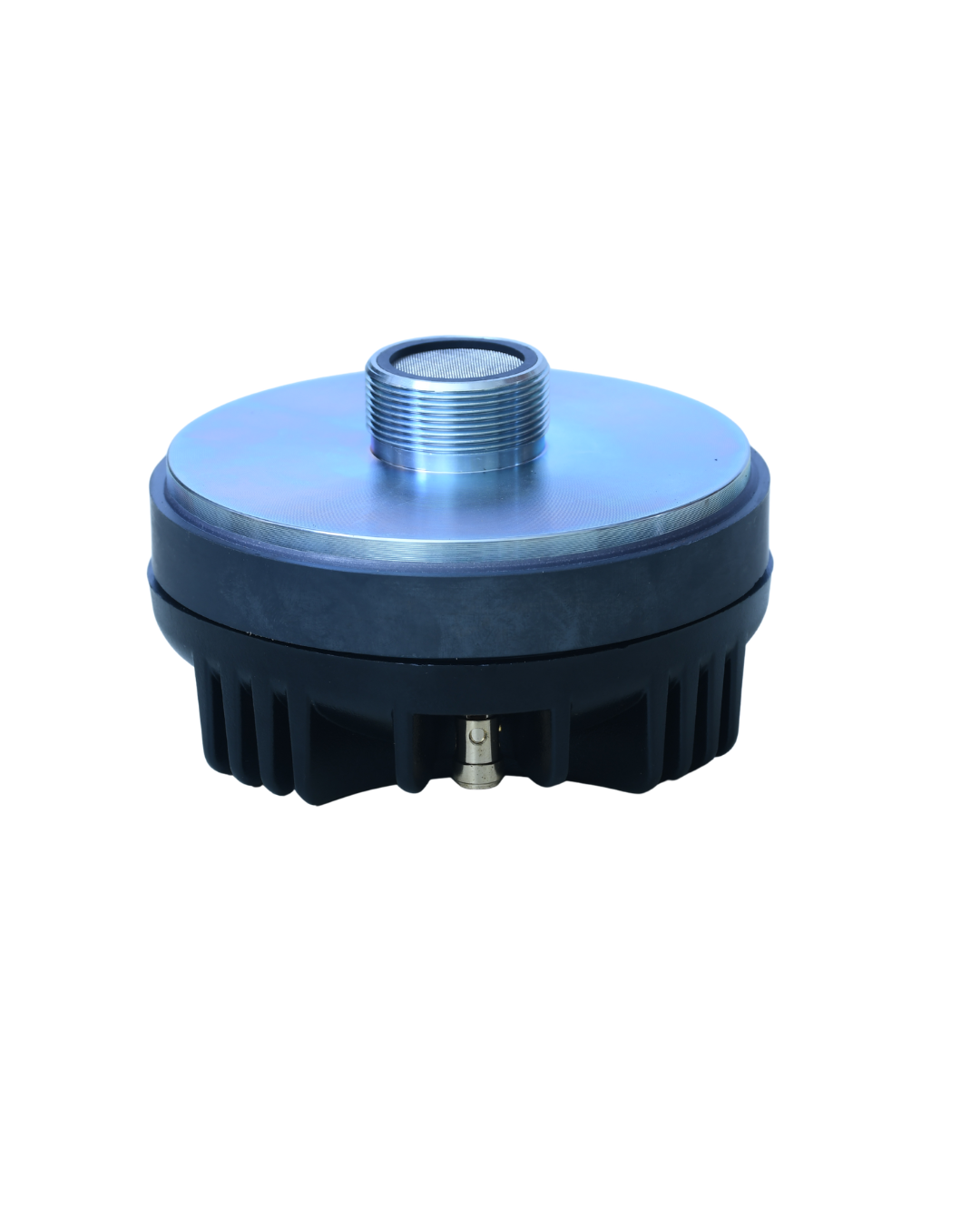

A high-sensitivity compression driver with titanium diaphragm for crystal-clear high frequency reproduction

• NOMINAL IMPEDANCE: 8Ω

• PROGRAM POWER: 80W

• SENSITIVITY (1M/1W): 107dB

• FREQUENCY RANGE: 1.0kHz–20kHz

• VOICE COIL DIAMETER: 2.03"

• VOICE COIL MATERIAL: CCAW

• DIAPHRAGM MATERIAL: TITANIUM

• THROAT SIZE: 1.0"

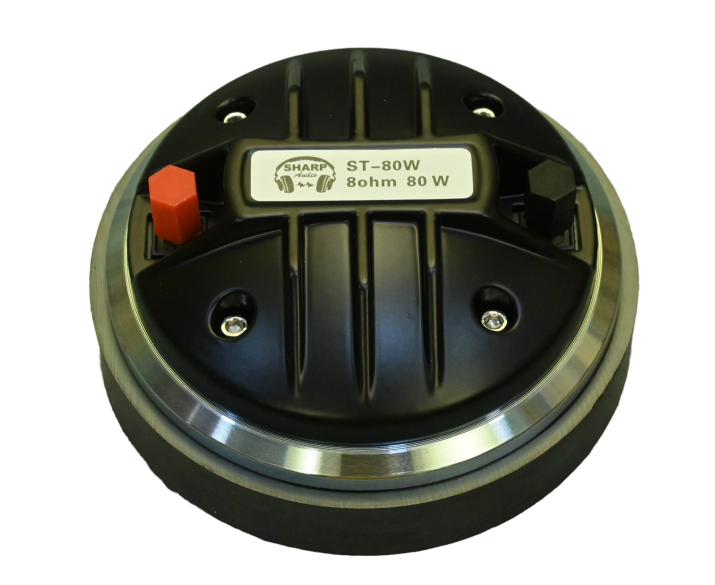

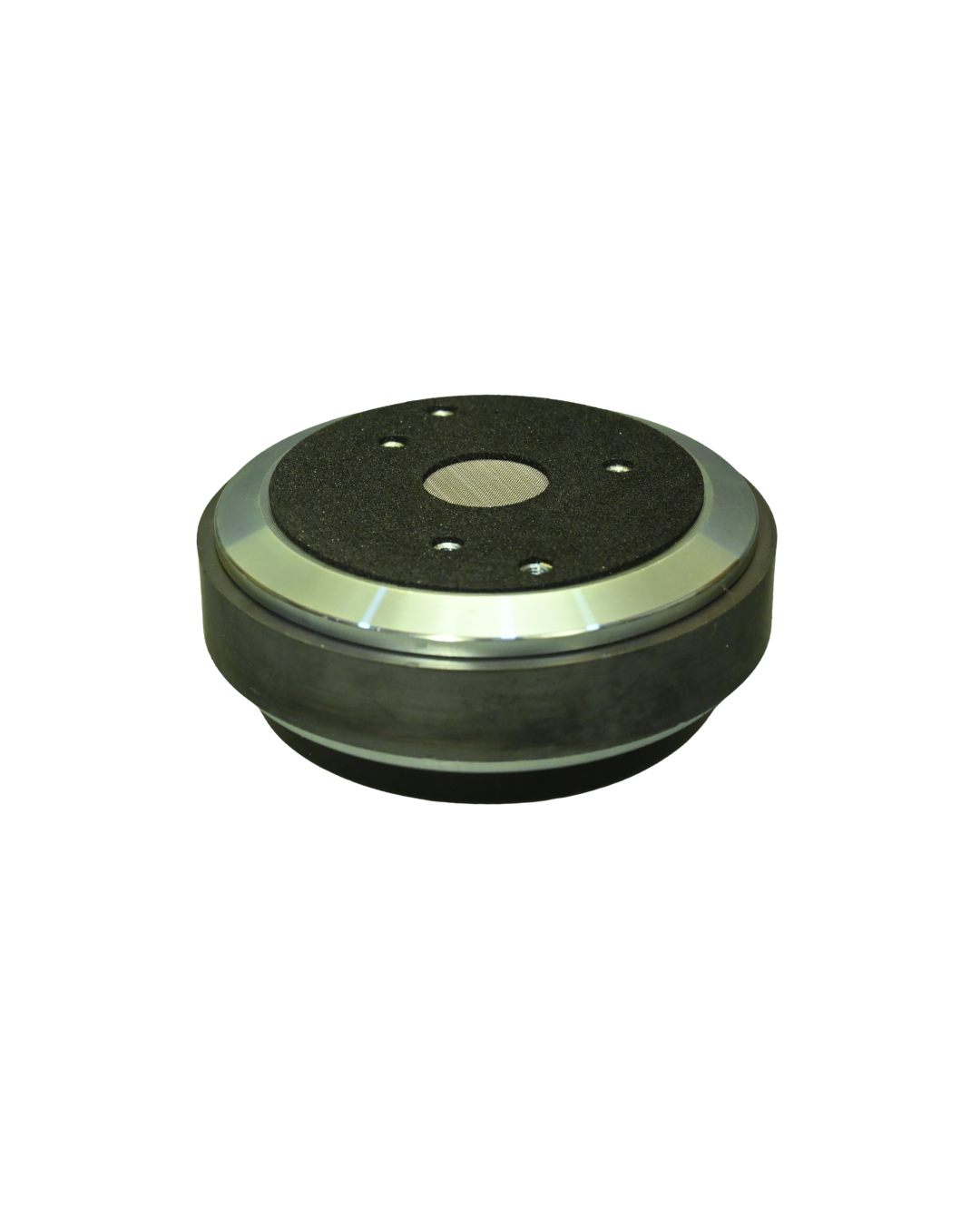

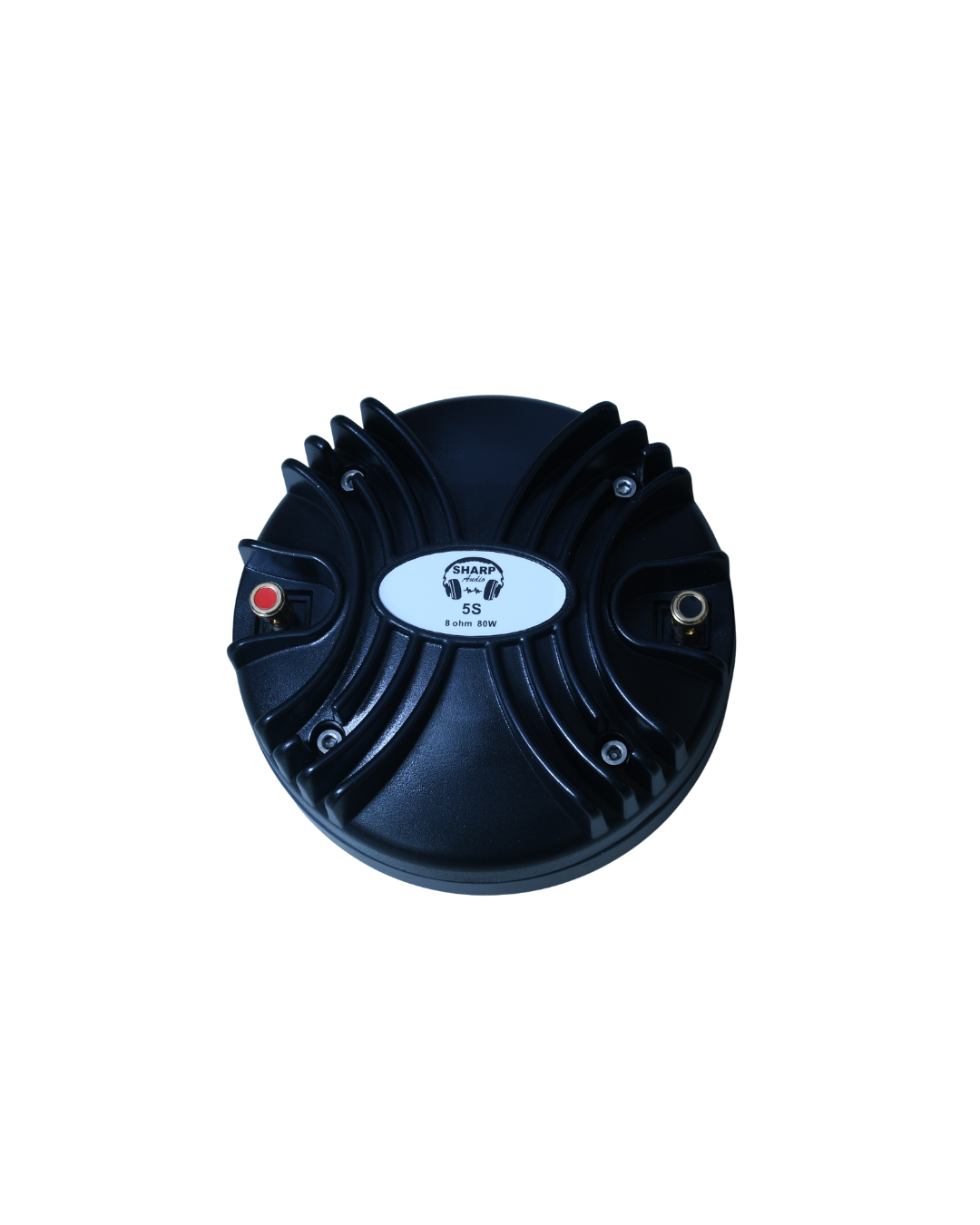

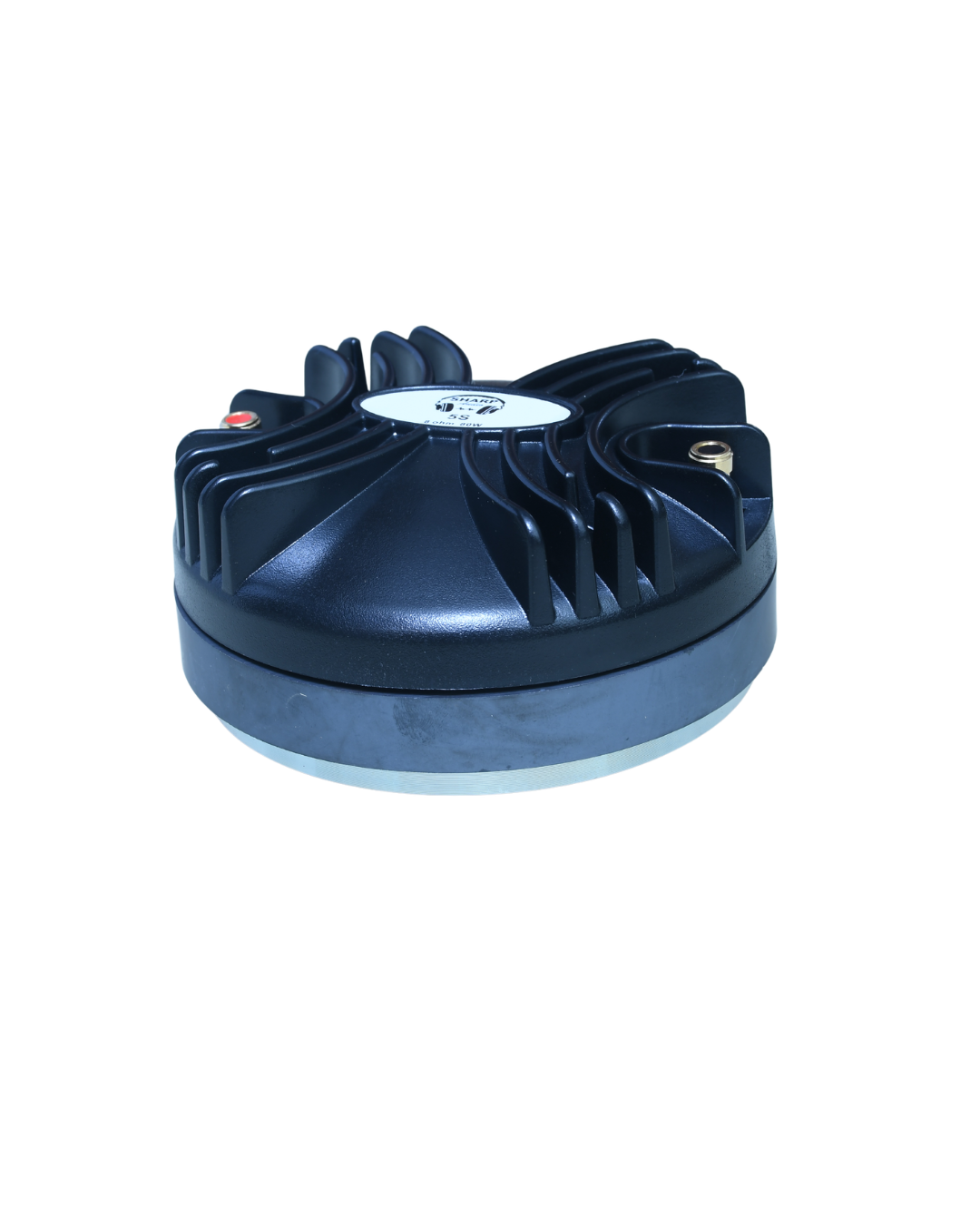

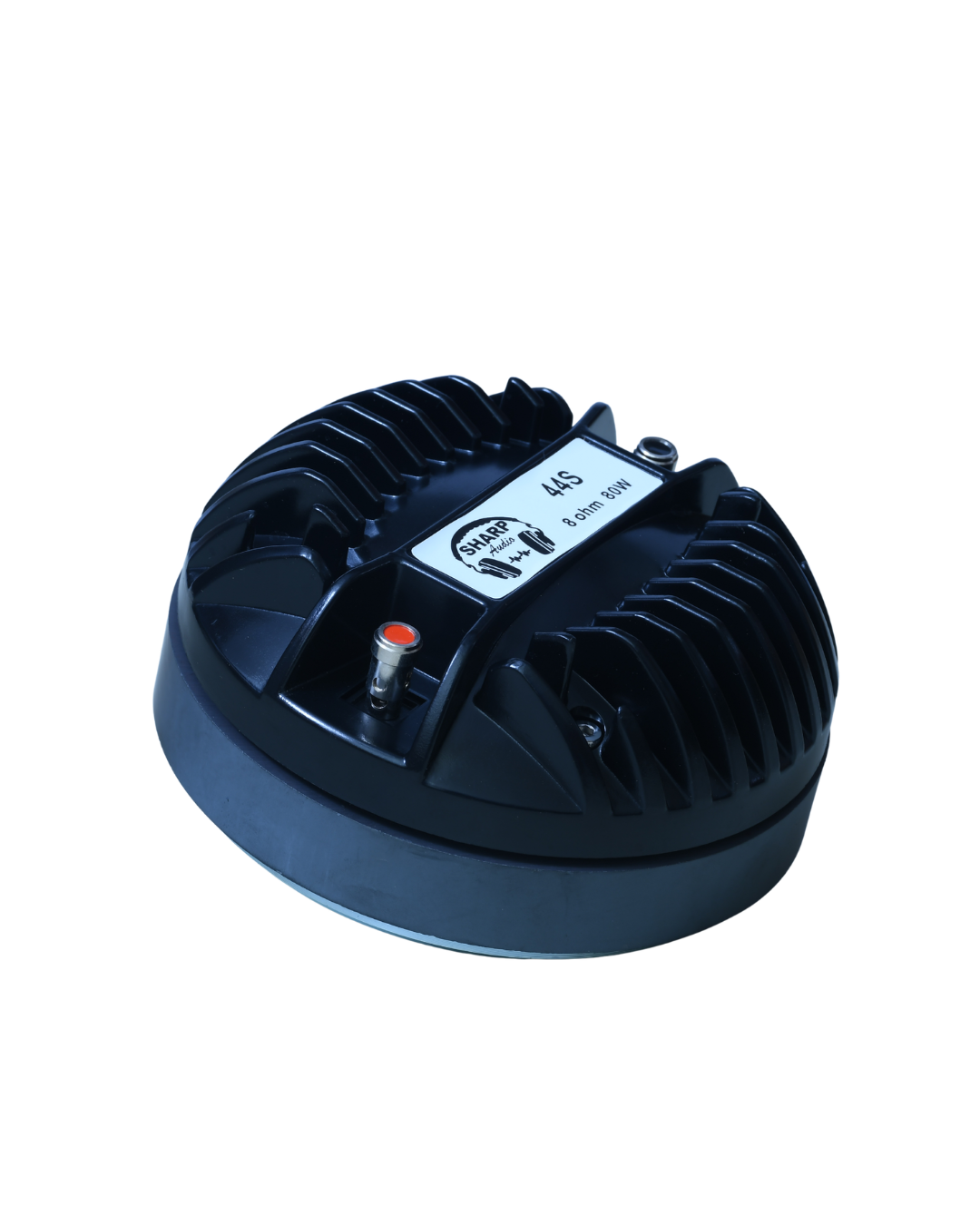

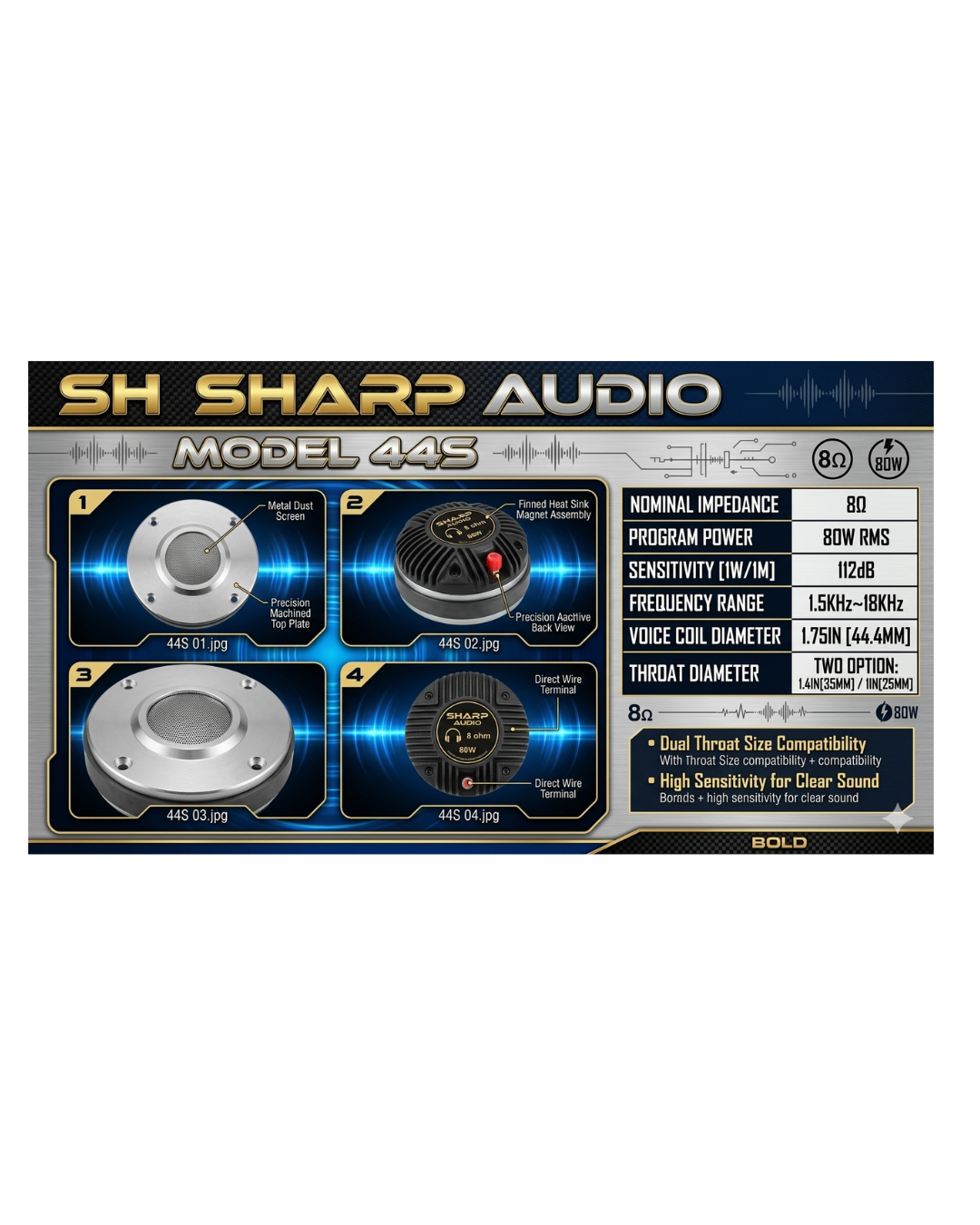

A high-sensitivity compression driver with titanium diaphragm for crystal-clear high frequency reproduction

• NOMINAL IMPEDANCE: 8Ω

• PROGRAM POWER: 80W

• SENSITIVITY (1M/1W): 112dB

• FREQUENCY RANGE: 1.5kHz–18kHz

• VOICE COIL DIAMETER: 1.75IN(44.4MM)

• THROAT DIAMETER: 1.4IN(35MM)/1IN(25MM)

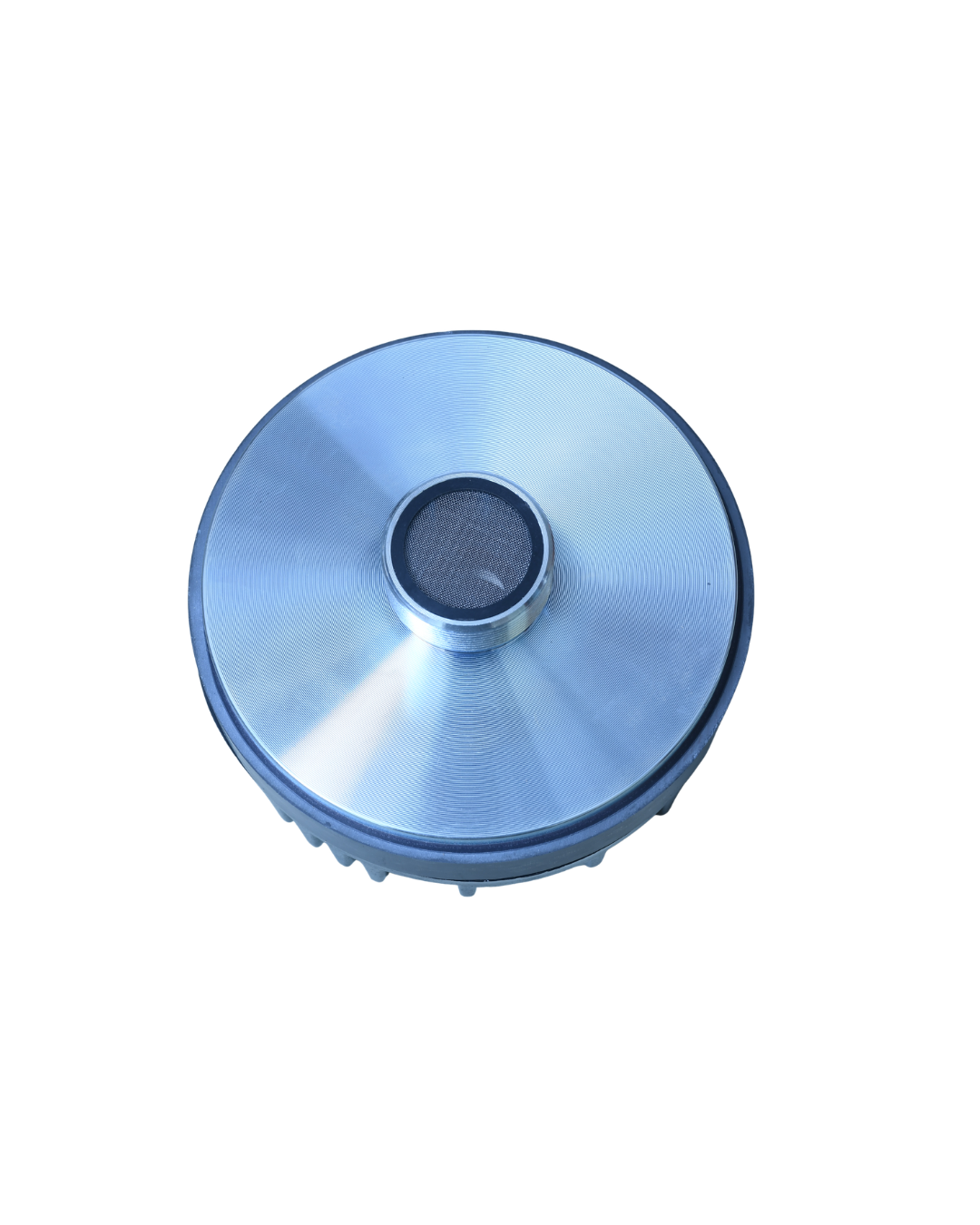

A high-sensitivity compression driver with titanium diaphragm for crystal-clear high frequency reproduction

• NOMINAL IMPEDANCE: 8Ω

• PROGRAM POWER: 80W

• SENSITIVITY (1M/1W): 107dB

• FREQUENCY RANGE: 1.0kHz–20kHz

• VOICE COIL DIAMETER: 2.03"

• VOICE COIL MATERIAL: CCAW

• DIAPHRAGM MATERIAL: TITANIUM

• THROAT SIZE: 1.0"

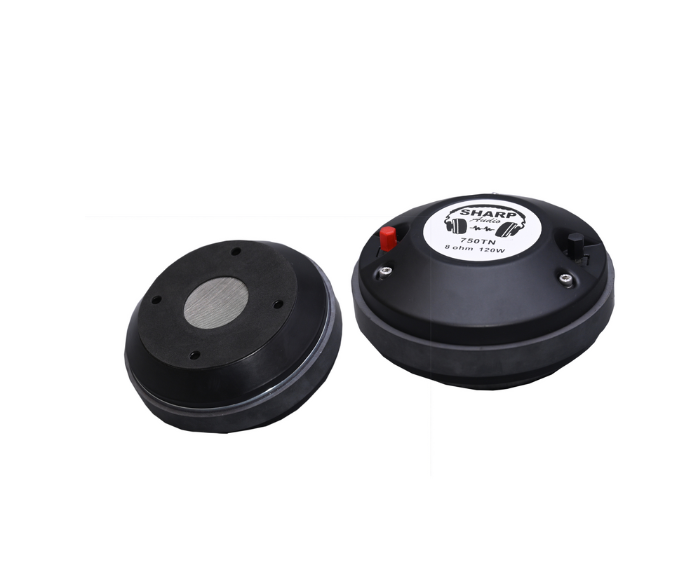

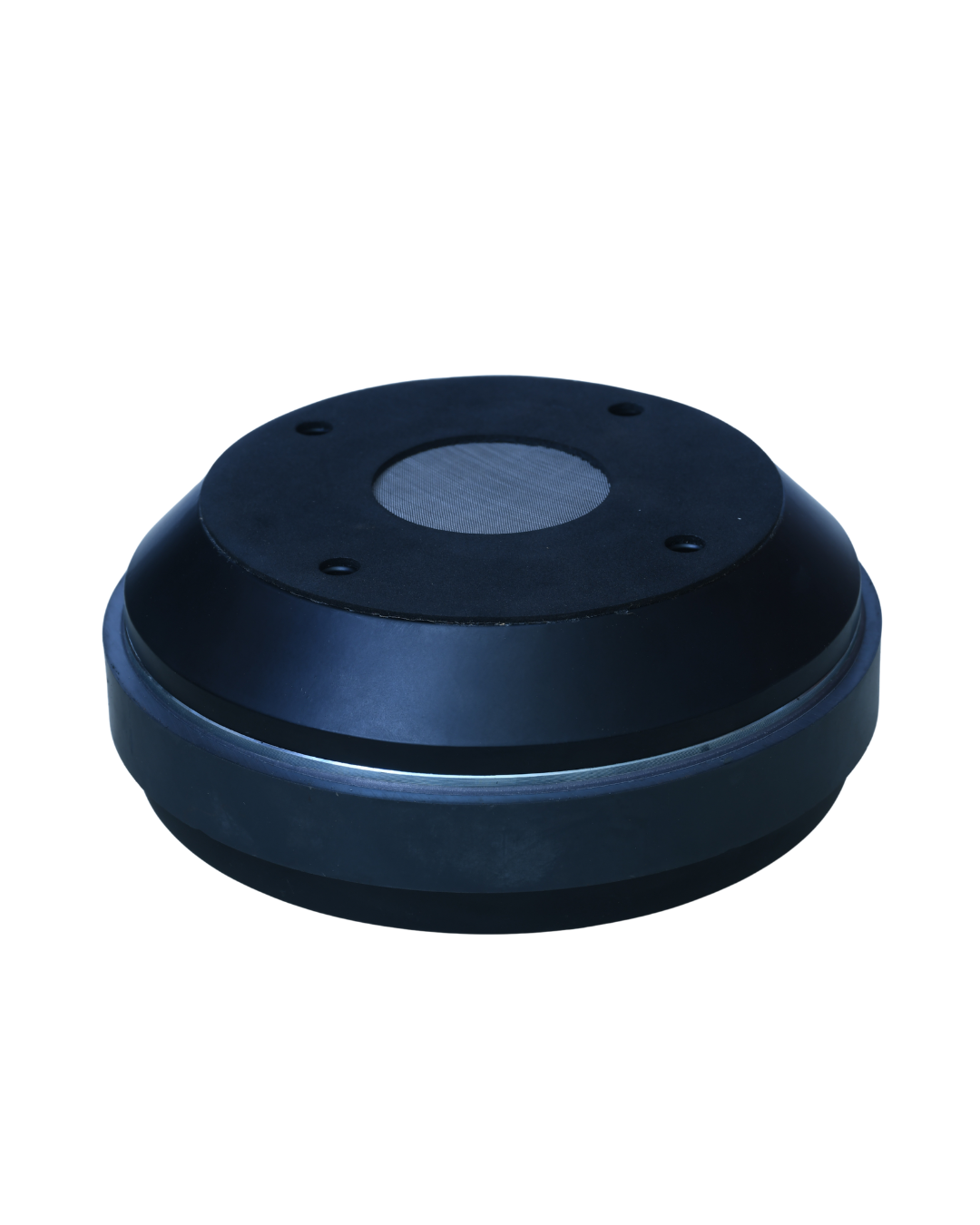

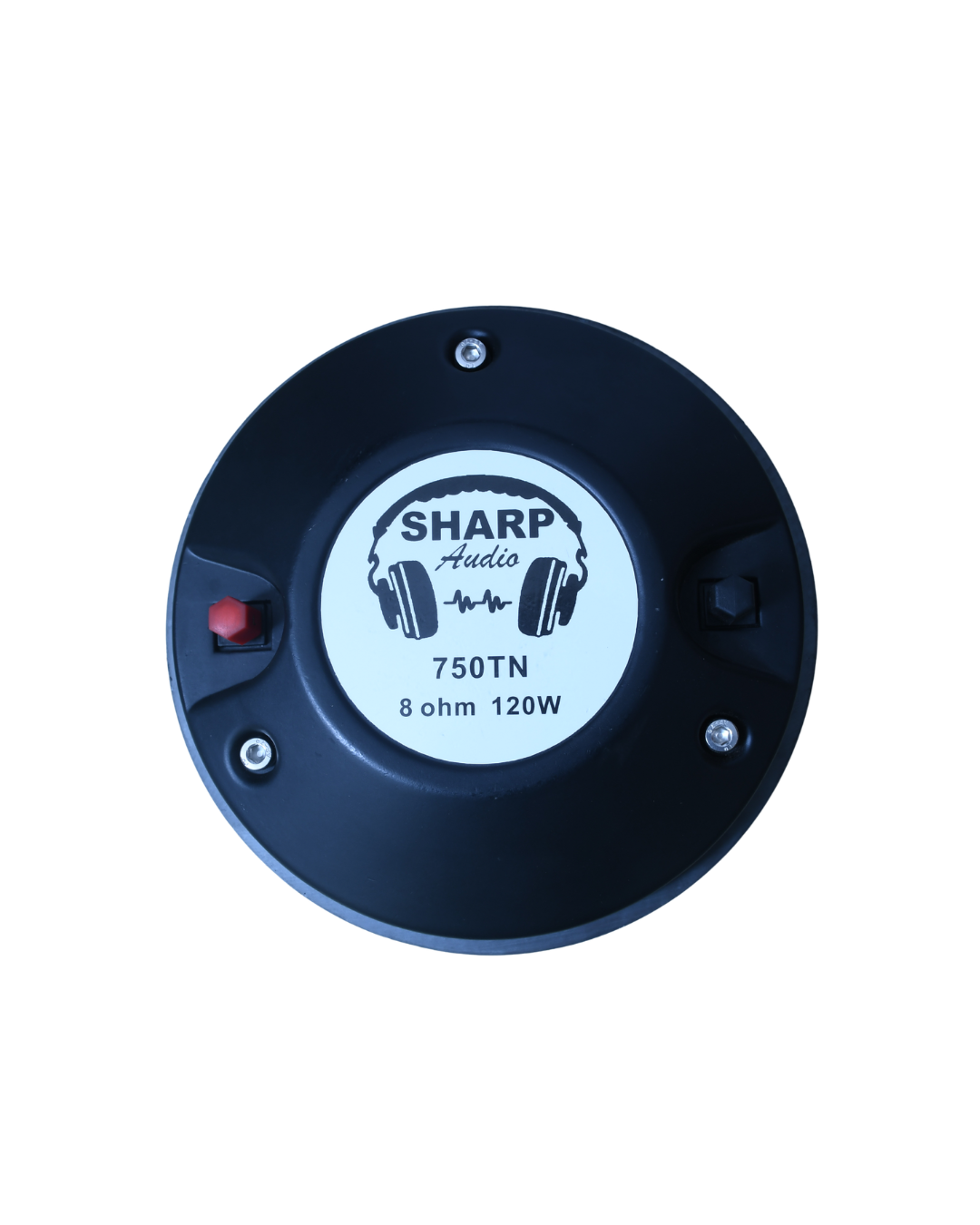

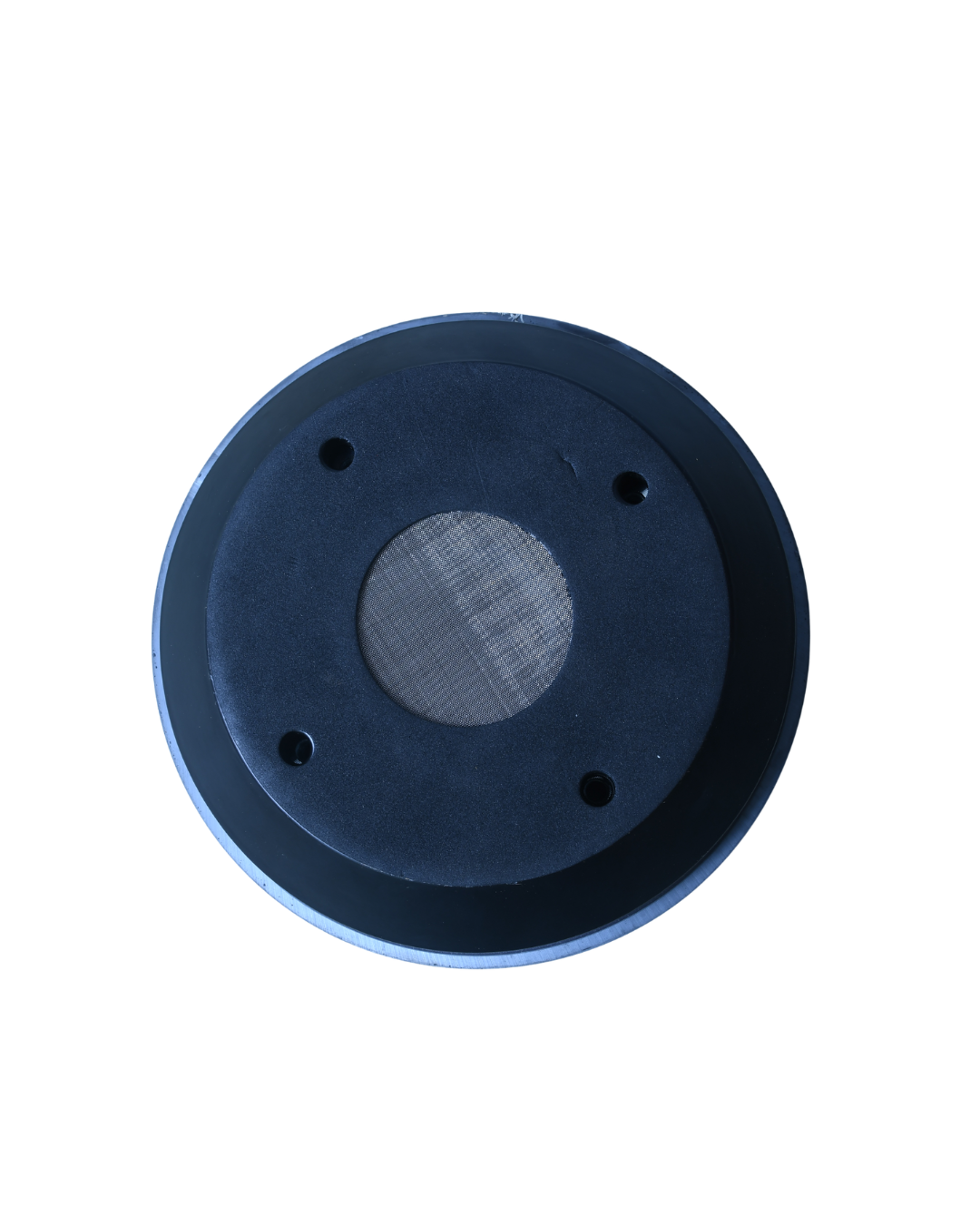

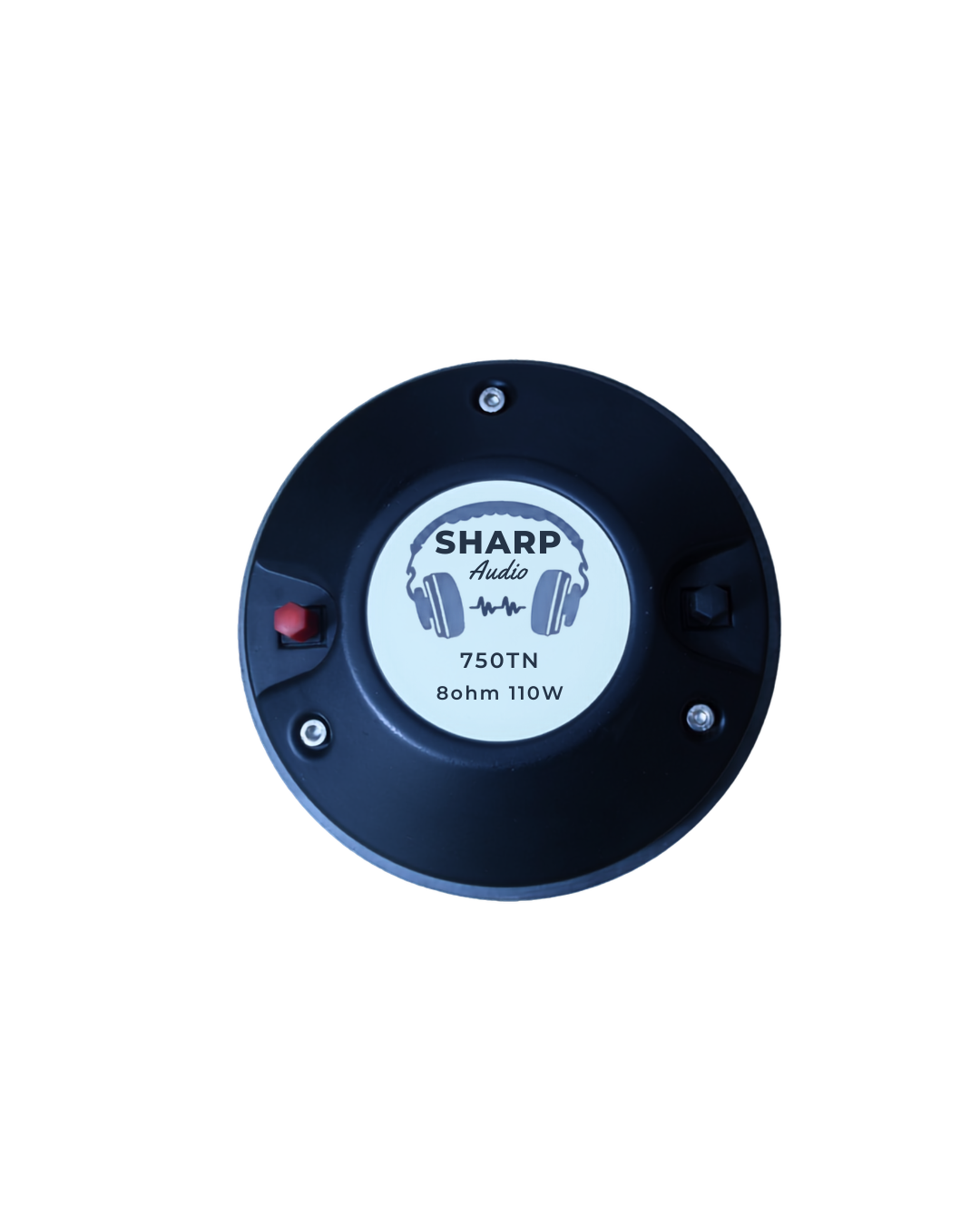

A high-sensitivity compression driver with titanium diaphragm for crystal-clear high frequency reproduction

• NOMINAL IMPEDANCE: 8Ω

• PROGRAM POWER: 120W

• SENSITIVITY (1M/1W): 107dB

• FREQUENCY RANGE: 1.2kHz–20kHz

• VOICE COIL DIAMETER: 3.0"

• VOICE COIL MATERIAL: ALR

• DIAPHRAGM MATERIAL: TITANIUM

• MAGENET SIZE: 170MM

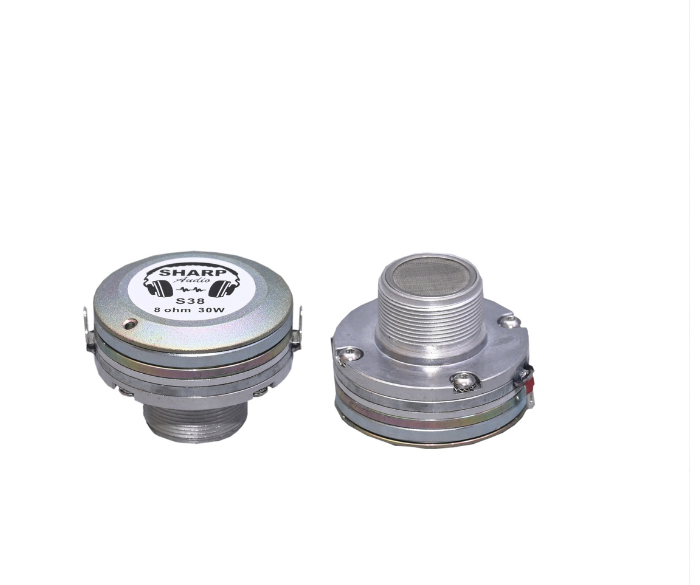

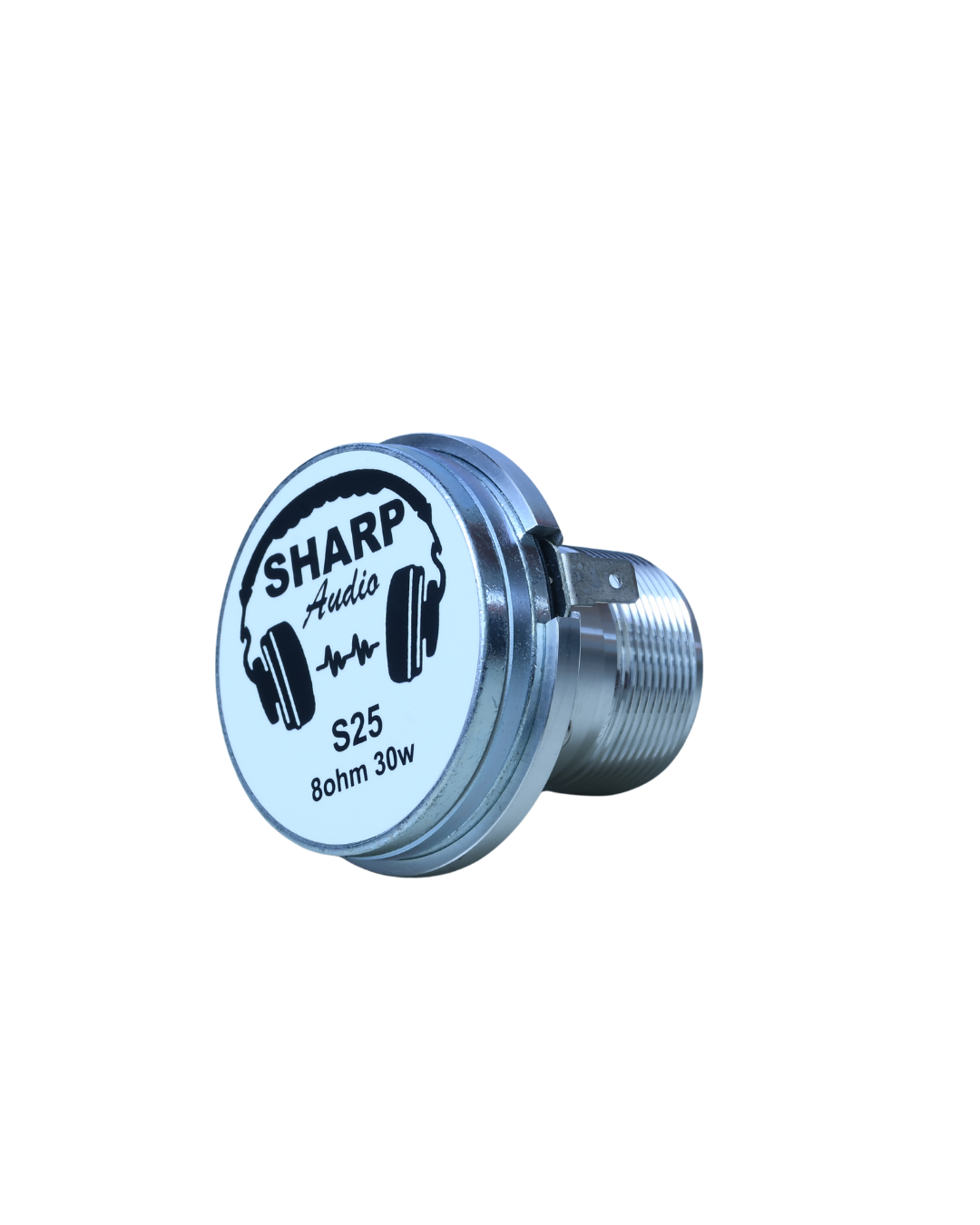

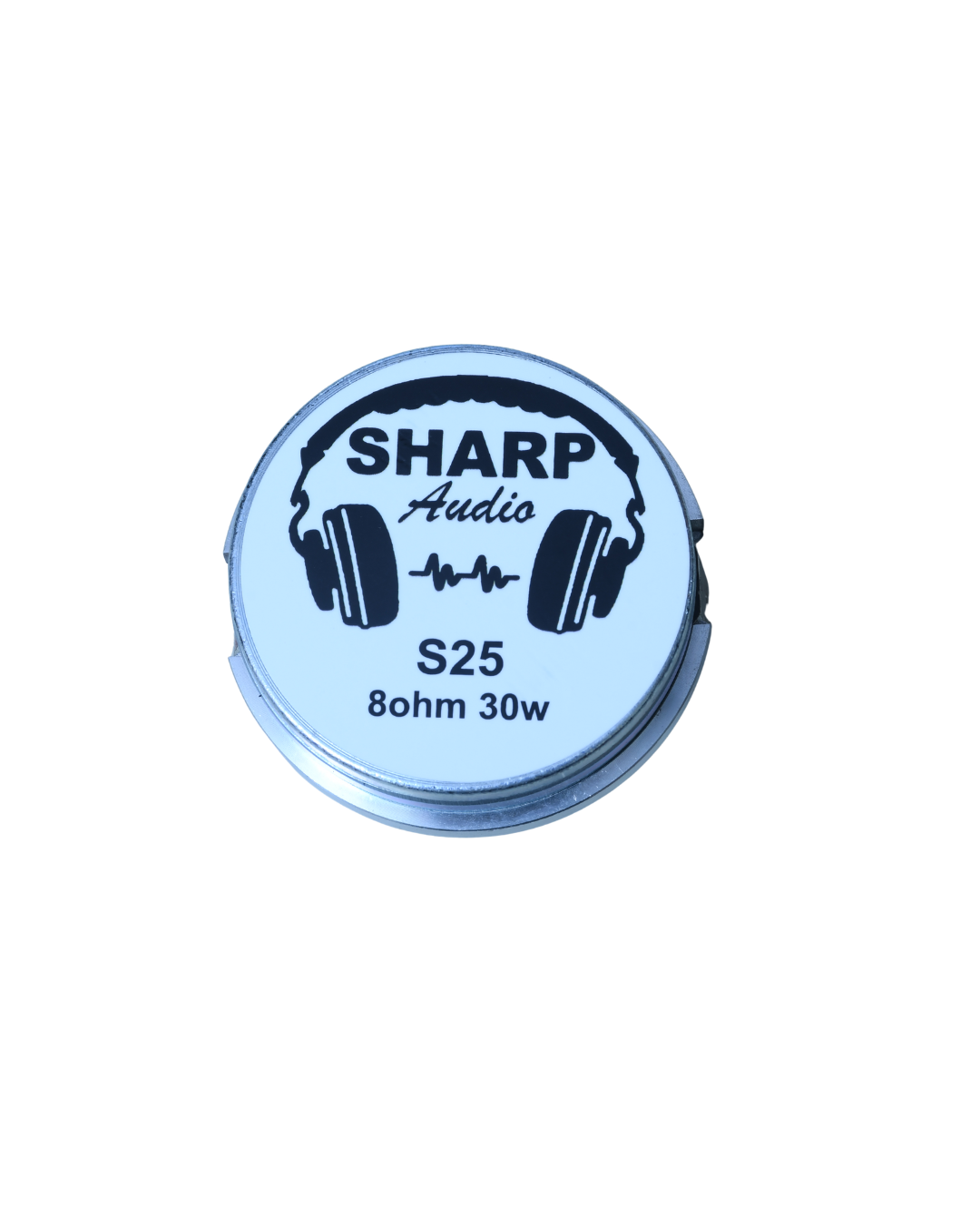

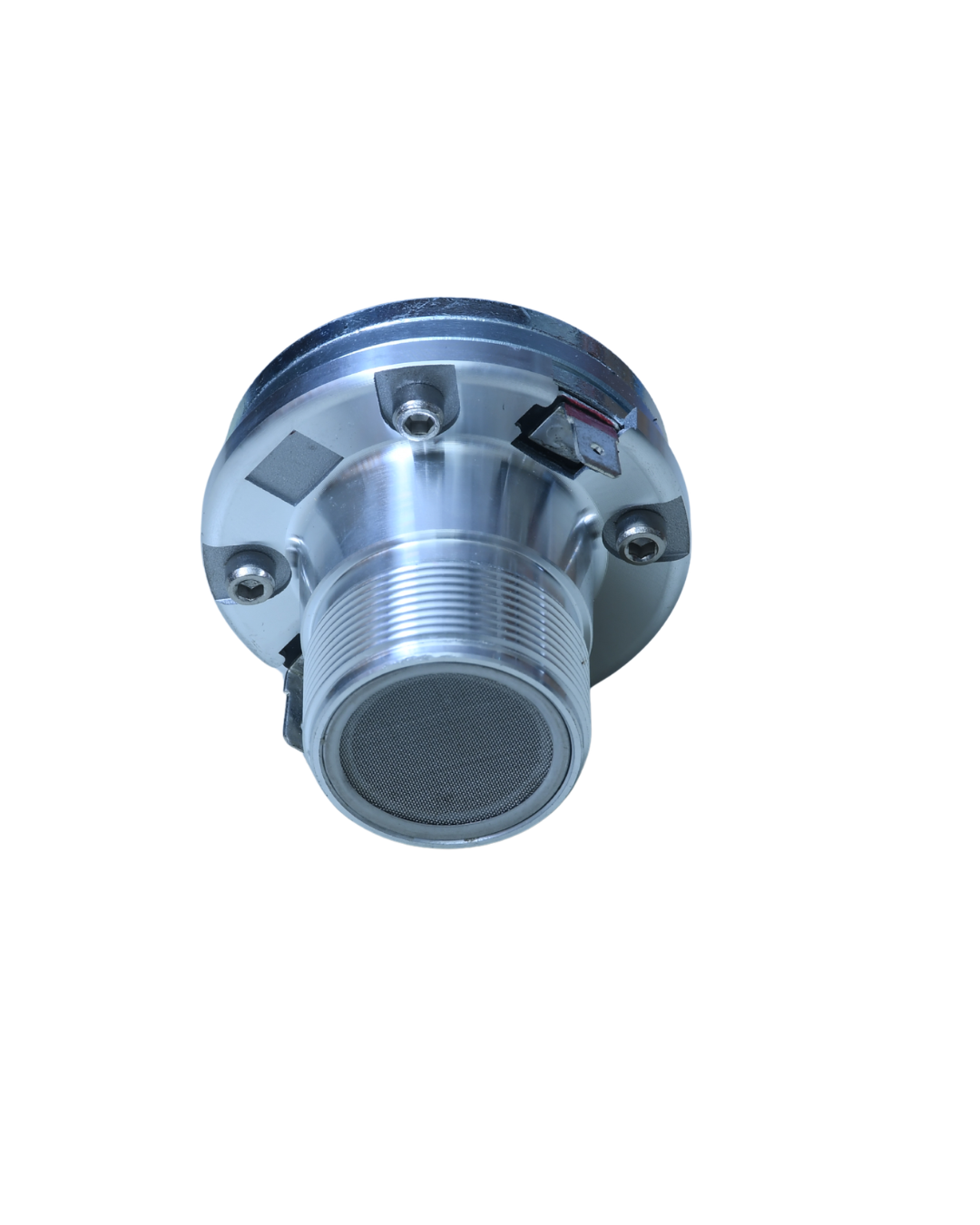

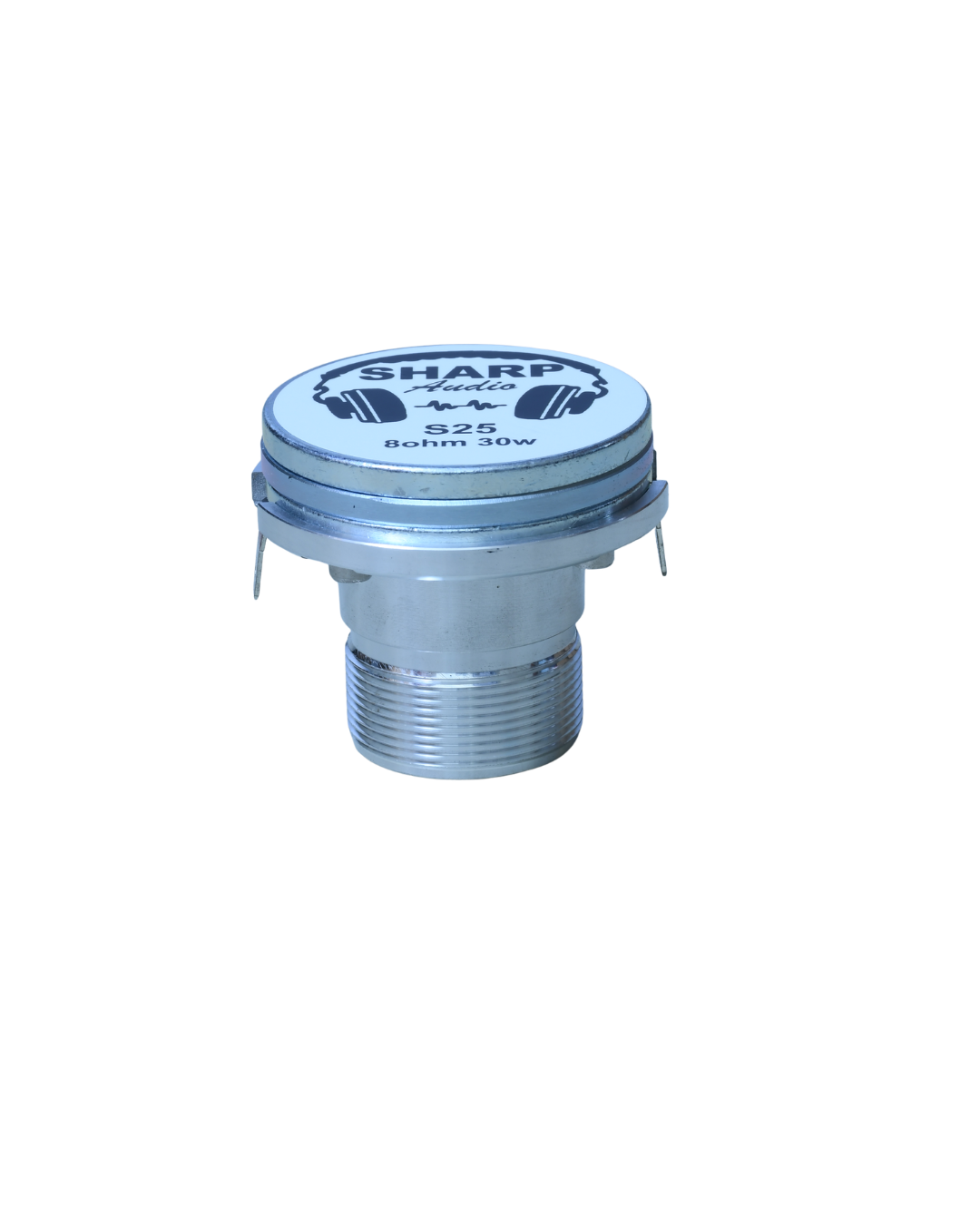

High-performance compression driver with neodymium magnet and PPS diaphragm for professional audio applications

• THROAT DIAMETER: 1 IN (25MM)

• MOUNTING TYPE: SCREW ON 1-3/8"

• NOMINAL IMPEDANCE: 8Ω

• POWER CAPACITY: 30W RMS (Pink Noise Signal -12dB/Oct)

• SENSITIVITY (1W/1M): 107dB (Mounted on JC H-613 Horn)

• FREQUENCY RANGE: 1.5Hz–20KHz

• DIAPHRAGM MATERIAL: PPS

• VOICE COIL DIAMETER: 1.5 IN (38MM)

• FLUX DENSITY: 1.8T

• MAGNET: NEODYMIUM N-38H

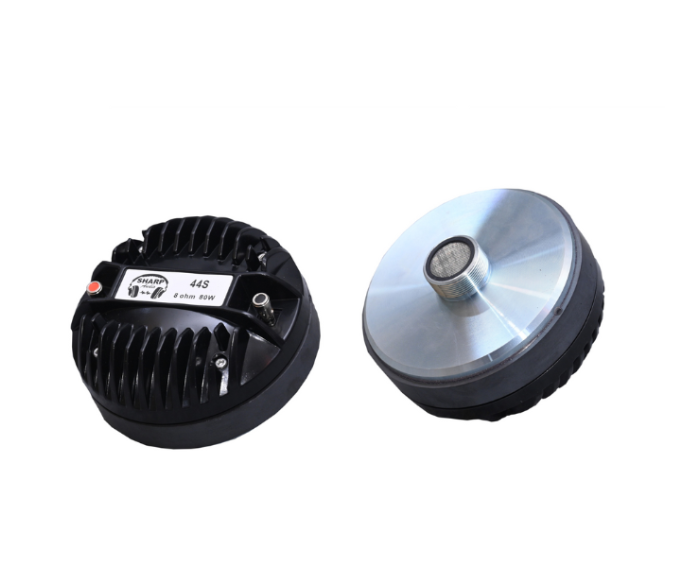

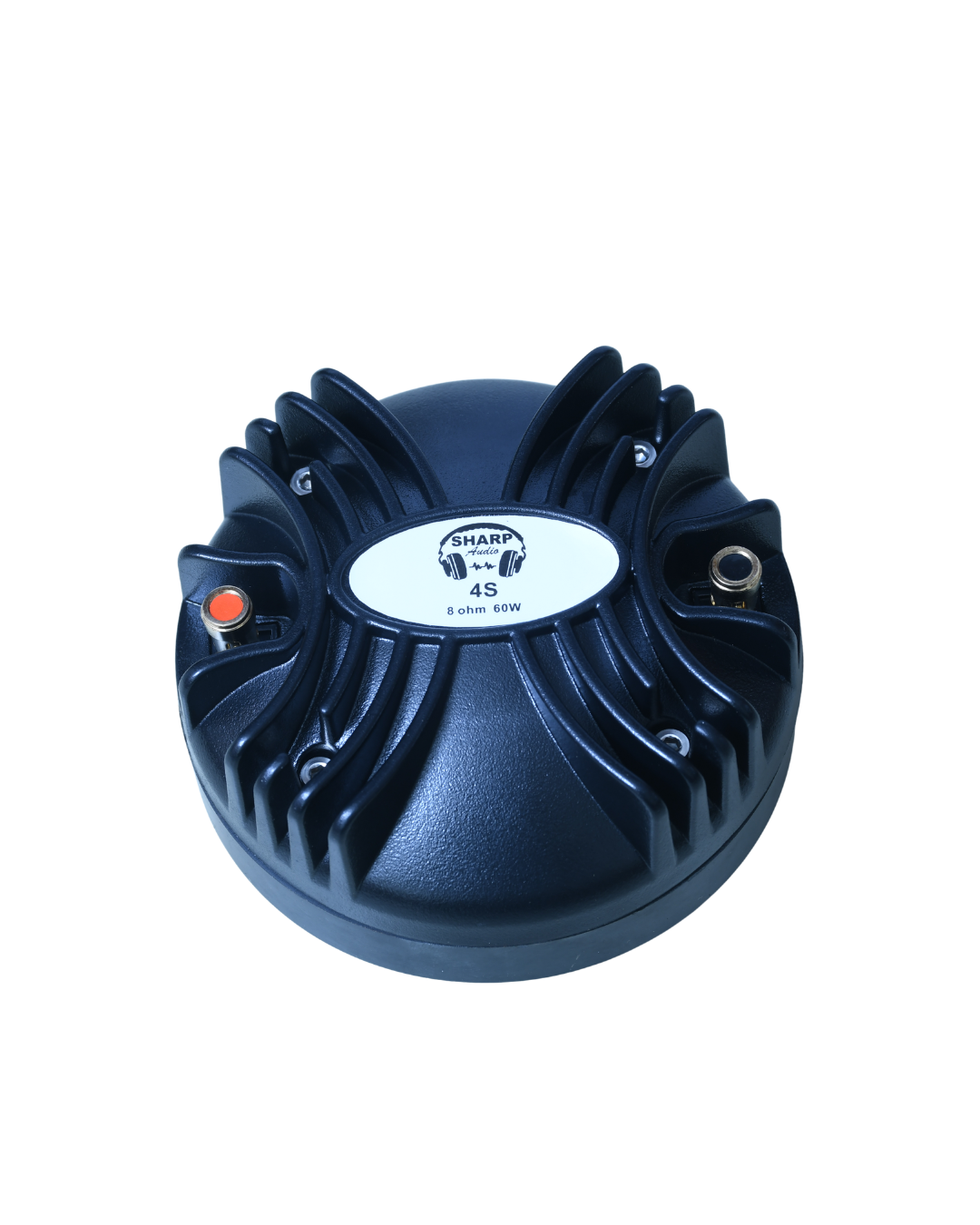

Ultra-high-sensitivity compression driver with neodymium magnet for professional audio applications

• POWER CAPACITY: 60 WATTS (Pink Noise Signal)

• FREQUENCY RANGE: 1KHz–20KHz

• SENSITIVITY (1W/1M): 108dB

• VOICE COIL DIAMETER: 44.4MM (1.75IN)

• OUTER DIAMETER: 85MM (3.35IN)

• MAGNET MATERIAL: NEO

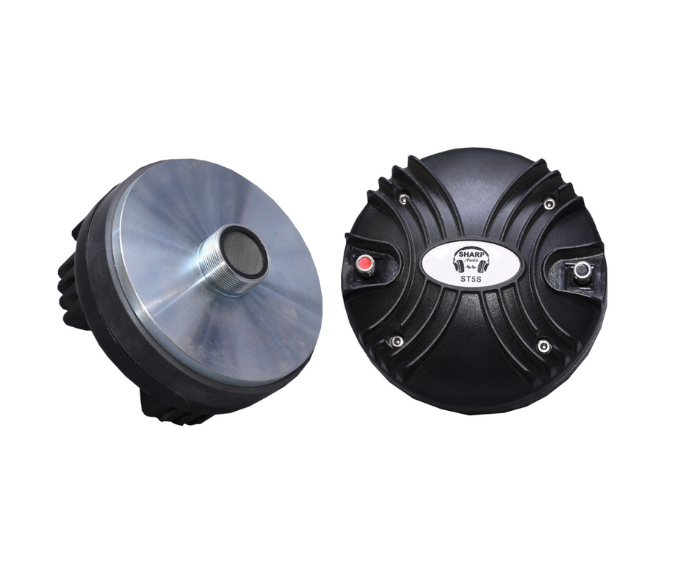

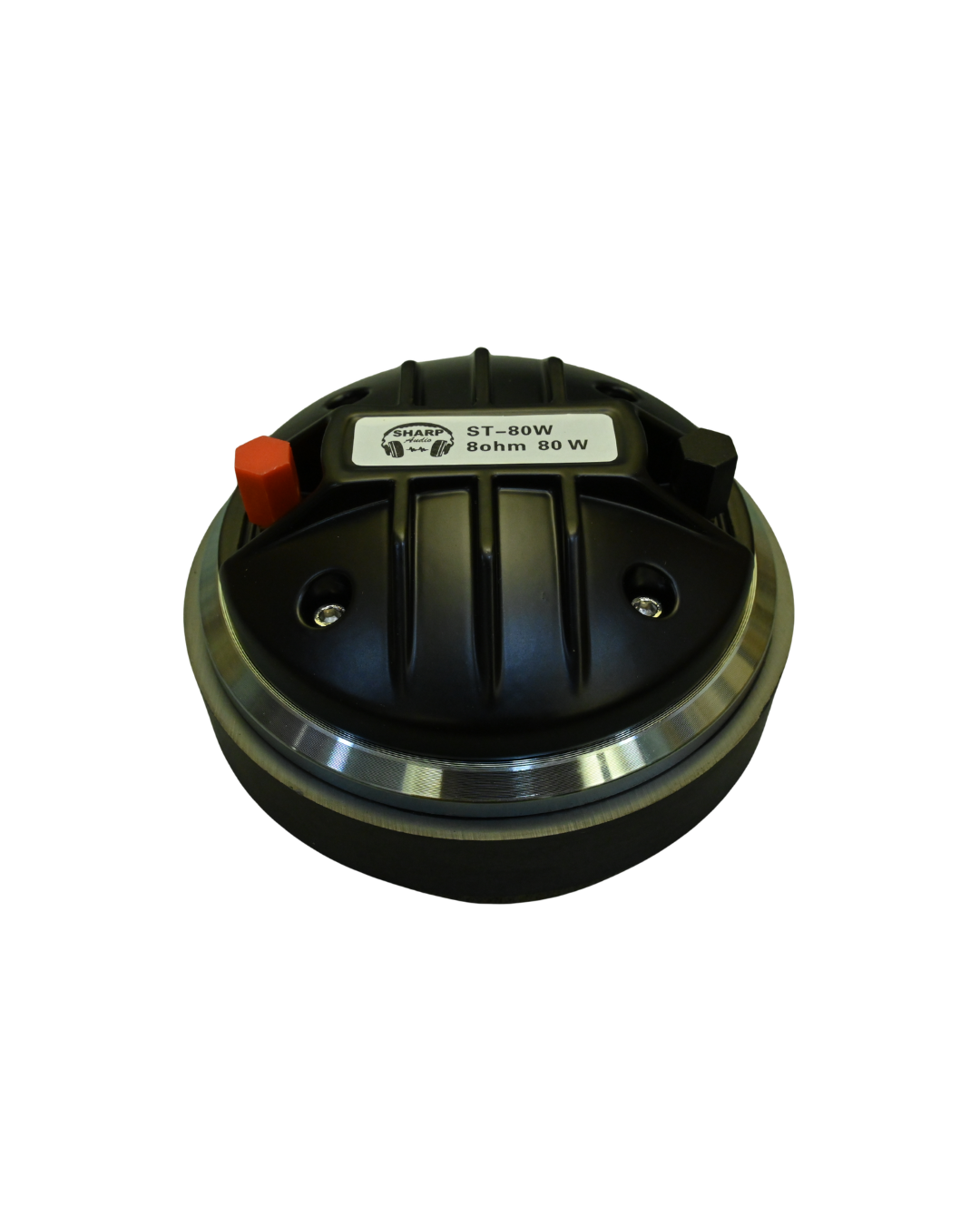

High-performance compression driver with neodymium magnet and ultra-wide frequency response

• POWER CAPACITY: 80 WATTS (Pink Noise Signal)

• FREQUENCY RANGE: 1KHz–20KHz

• SENSITIVITY (1W/1M): 108dB

• VOICE COIL DIAMETER: 44.4MM (1.75IN)

• OUTER DIAMETER: 102MM (4IN)

• MAGNET MATERIAL: NEO

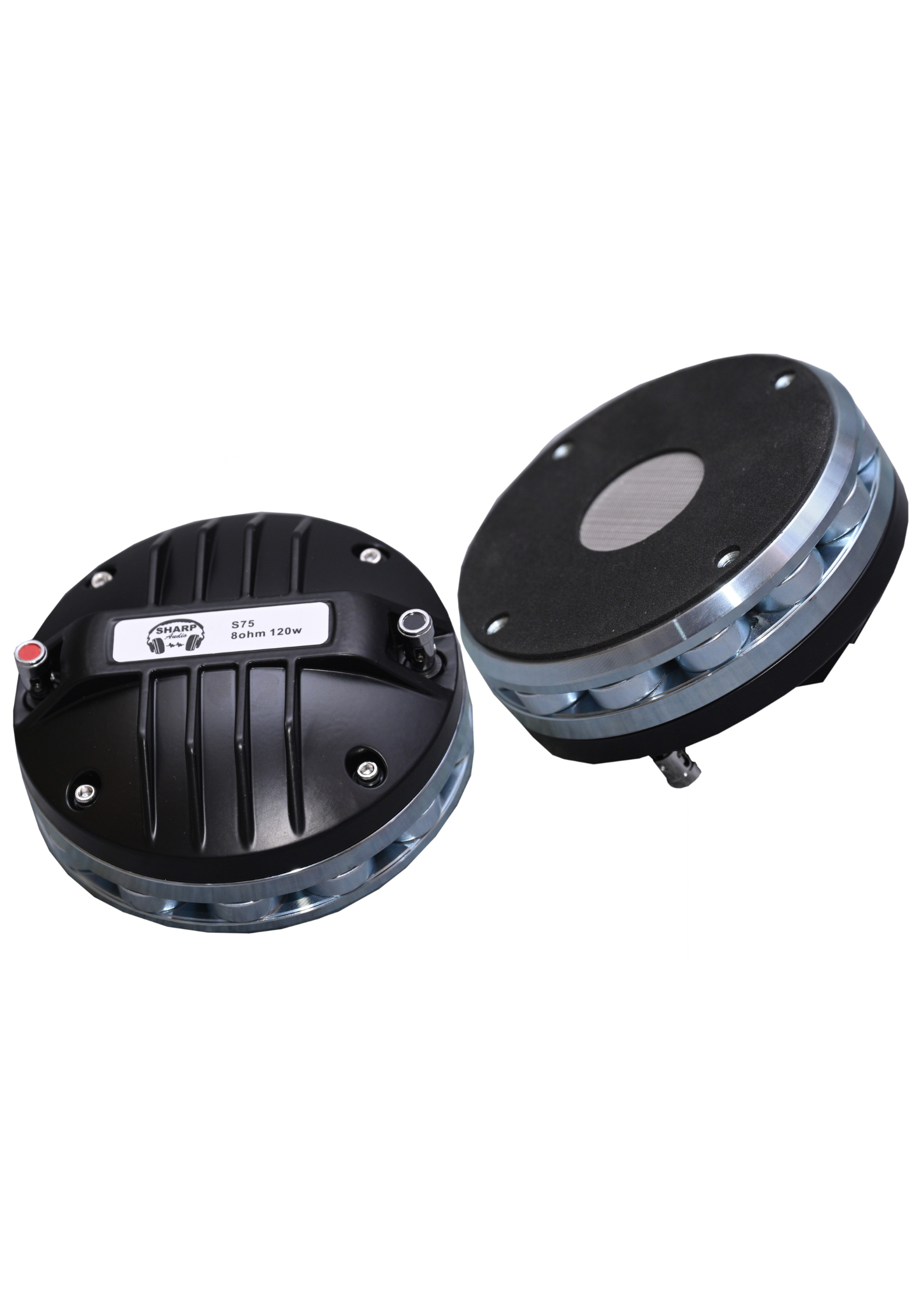

Professional-grade compression driver with massive 2.94" voice coil and 120W power handling for high-output applications

• POWER CAPACITY: 120 WATTS (Pink Noise Signal)

• FREQUENCY RANGE: 1KHz–18KHz

• SENSITIVITY (1W/1M): 108dB

• VOICE COIL DIAMETER: 74.6MM (2.94IN)

• OUTER DIAMETER: 125MM (4.92IN)

• MAGNET MATERIAL: NEO

Professional-grade compression driver with massive 2.94" voice coil and 120W power handling for high-output applications

• POWER CAPACITY: 120 WATTS (Pink Noise Signal)

• FREQUENCY RANGE: 1KHz–18KHz

• SENSITIVITY (1W/1M): 108dB

• VOICE COIL DIAMETER: 74.6MM (2.94IN)

• OUTER DIAMETER: 125MM (4.92IN)

• MAGNET MATERIAL: NEO (Neodymium)

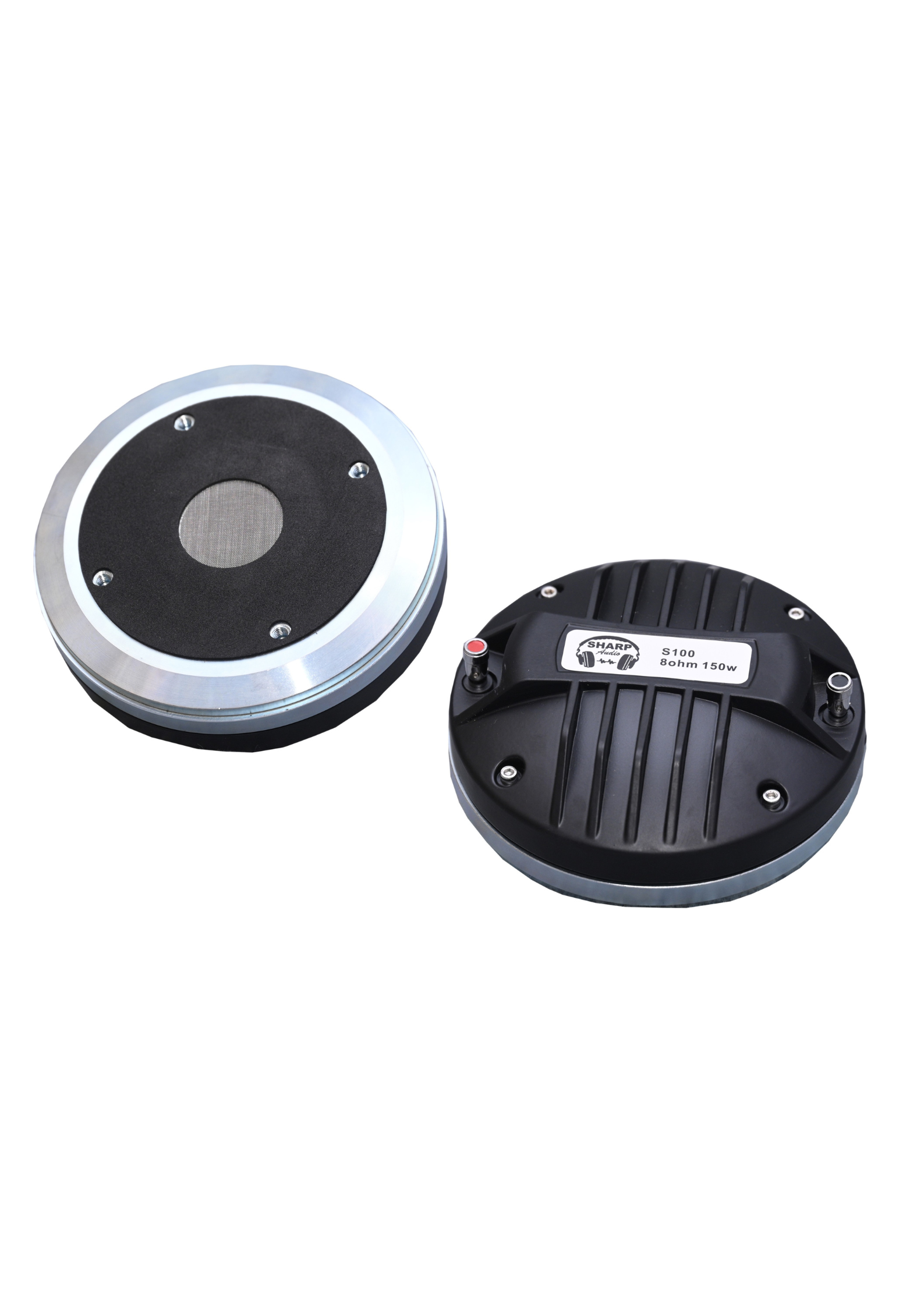

High-power neodymium driver with extended frequency response

• Power Capacity: 150 Watts (Pink Noise Signal)

• Frequency Range: 500Hz-20kHz

• Sensitivity: 110dB (1W/1m)

• Voice Coil: 100MM (4") Diameter

• Outer Diameter: 154mm (6.06 IN")

• Magnet Material:NEO

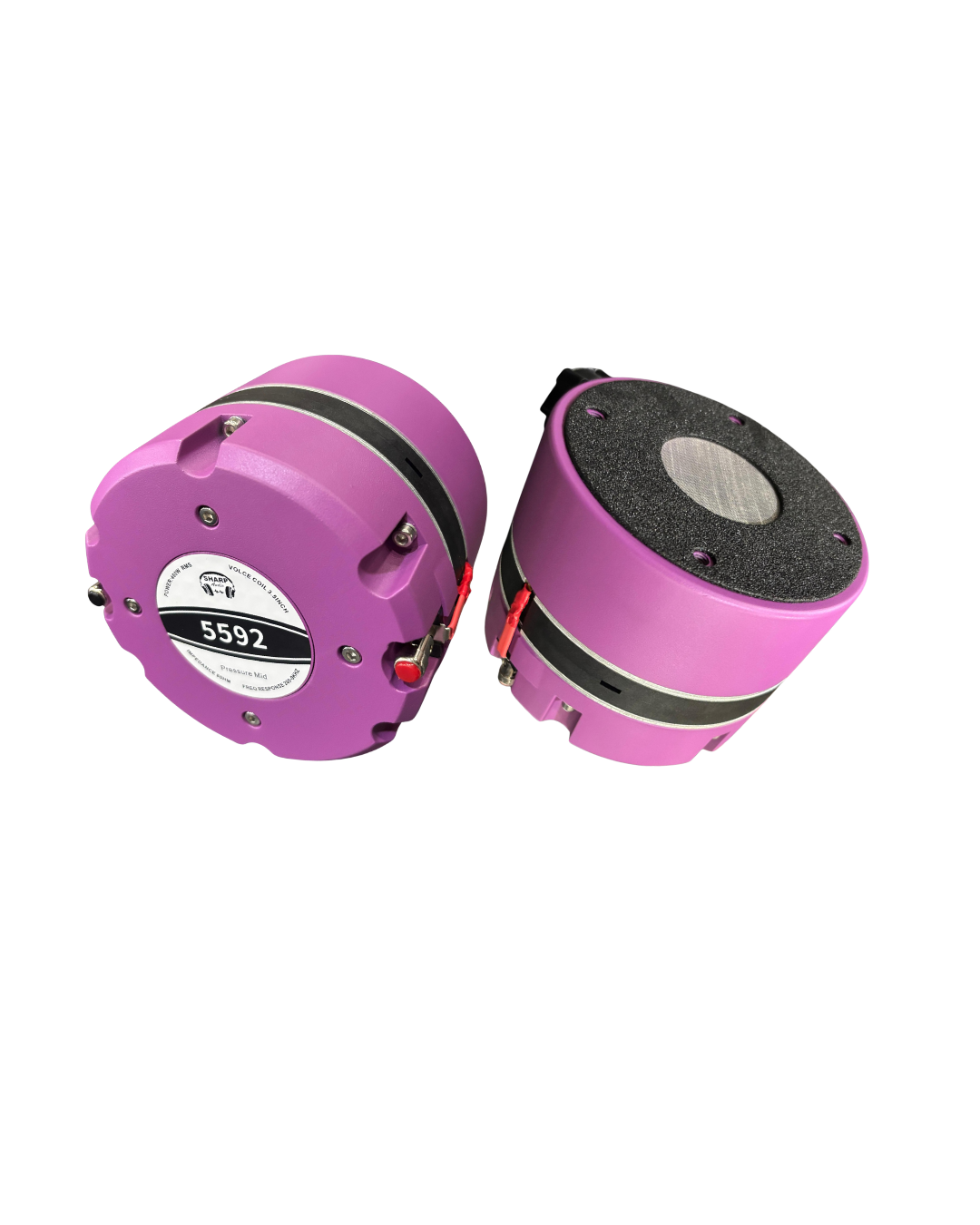

High-efficiency professional speaker driver with robust construction

• Nominal Impedance: 8Ω

• Program Power: 150W

• Sensitivity: 118dB (1W/1m)

• Frequency Range: 200Hz-9kHz

• Voice Coil: 3.5" Edge-Wound

• Diaphragm Material: Polyimide

• Throat Size: 2"

• Magnet Size: 180mm

• Voice Diameter:MID 3.5 X 2 CCAW

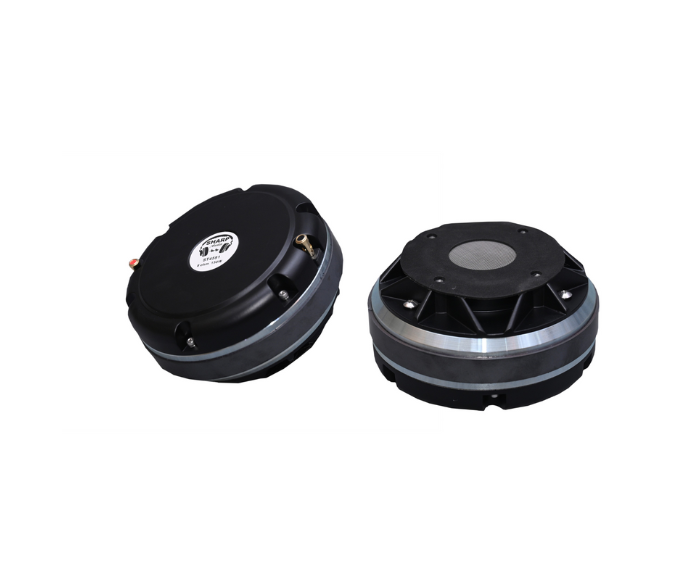

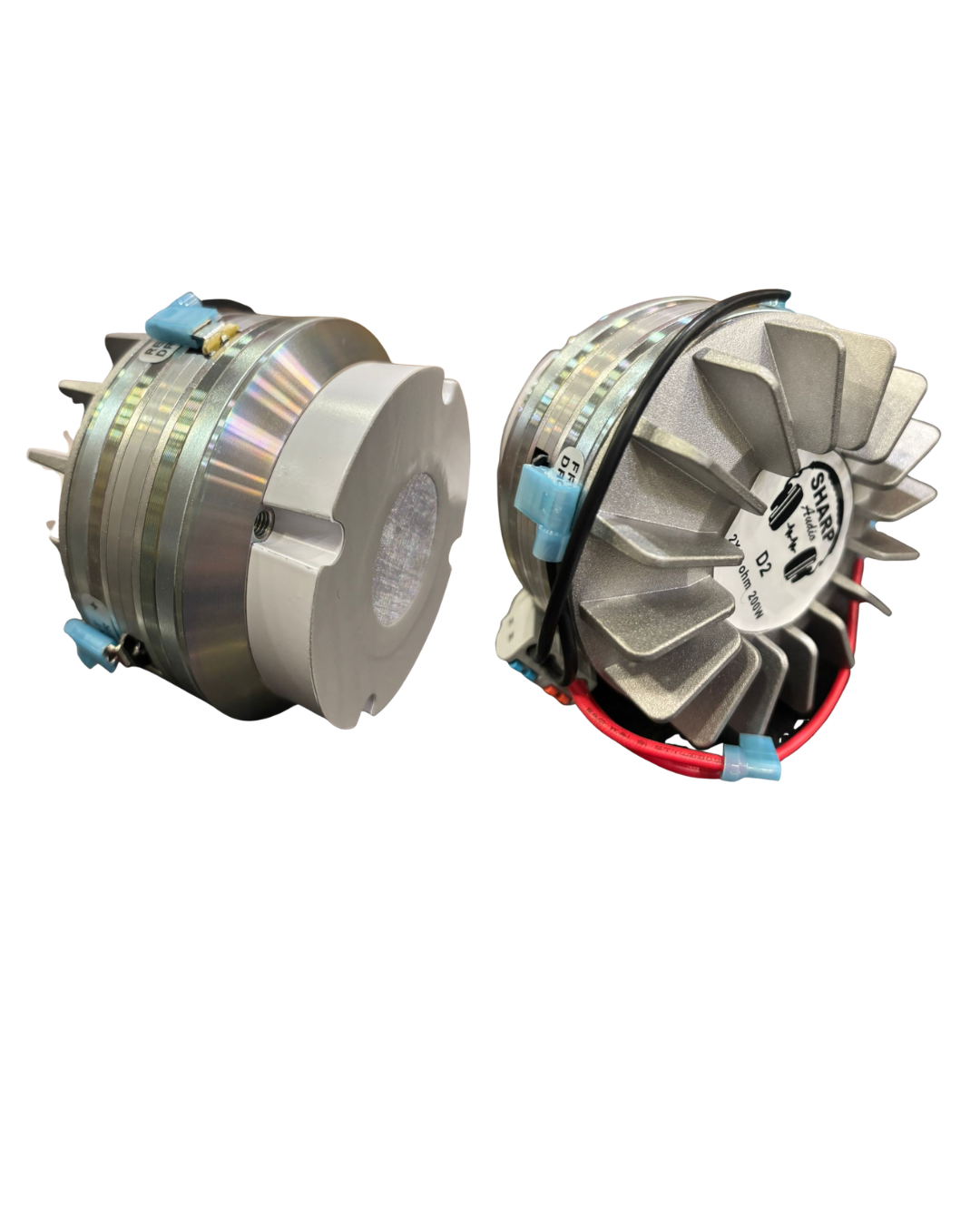

High-performance speaker system with dual voice coil

• Nominal Impedance: 2×16Ω

• Power Rating: 2×200W (8Ω)

• Sensitivity: 123dB (1W/1m)

• Frequency Range: 200Hz-9kHz

• Voice Coil: 3.5"×2 (Dual)

• Diaphragm Material: Polyimide

• Throat Size: 2"

• Magnet Size: 88mm

• Voice Diameter:MID 3.5 X 2 CCAW
